Kyoga Flanges, based in Bedok, Singapore, is a trusted manufacturer and supplier of high-performance industrial flanges, including the exceptional Hastelloy C276 flanges. Renowned for precision, reliability, and durability, Kyoga Flanges ensures that every product meets stringent international standards. Their Hastelloy C276 flanges are engineered to withstand the harshest industrial conditions, providing long-term corrosion resistance and structural integrity. Serving chemical, petrochemical, pharmaceutical, and marine industries, Kyoga Flanges combines advanced manufacturing techniques with meticulous quality control to deliver flanges that ensure safety, efficiency, and peace of mind in critical piping and industrial systems.
Hastelloy C276 flanges are crafted from a nickel-molybdenum-chromium alloy with small amounts of iron, providing outstanding resistance to pitting, crevice corrosion, and oxidizing and reducing environments. Their chemical composition allows them to endure the most aggressive chemicals, including acids and halides. Mechanically, these flanges offer excellent tensile strength, toughness, and ductility across a wide temperature range. The combination of high mechanical performance and superior corrosion resistance ensures that Hastelloy C276 flanges remain reliable, durable, and stable even under extreme industrial pressures and temperatures.
| C276 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| C276 Alloy Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C276 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C276 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C276 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C276 Forged Fittings Thread | NPT, BSPT, BSPP |
| C276 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C276 Forged Fittings Origin & Mills | Singapore |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

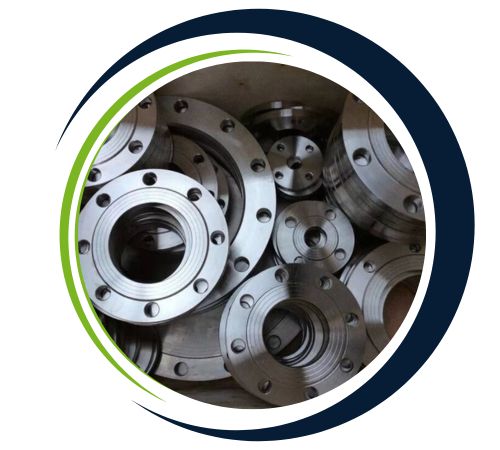

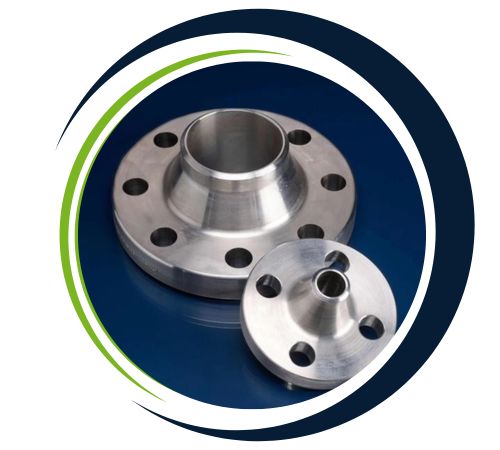

Kyoga Flanges, a leading supplier in Bedok, Bedok, offers an extensive selection of Hastelloy C276 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy C276 flanges are widely used in applications requiring high corrosion resistance. Especially flanges in harsh environments including acids, chlorides, and other corrosive agents because of their resistance to pitting, crack corrosion and stress corrosion in medicine, petrochemical field, and oil and gas fields. In addition to making it ideal for assembling valves and equipment. It is used in the medical and marine applications where reliable performance under extreme conditions is required. Hastelloy C276 flanges are optimized for high-temperature, high-pressure systems and provide safe leak-proof connections. That reduce the risk of failure and reduce maintenance in reactors, pipelines, heat exchangers and pressure vessels.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C276 Flanges to meet specific project needs. Our team at Kyoga Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@www.kyogaflanges.com.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | OR | GOST |
| Hastelloy C276 | N10276 | 2.4819 | – | NiMo16Cr15W | NW 0276 | ЭП760 | ХН65МВУ |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C276 | 0.01 | 15.0 – 17.0 | 1.0 | 0.08 | 4.00 – 7.00 | 0.04 | 0.03 | 2.5 | 14.5 – 16.5 | 3 – 4.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
