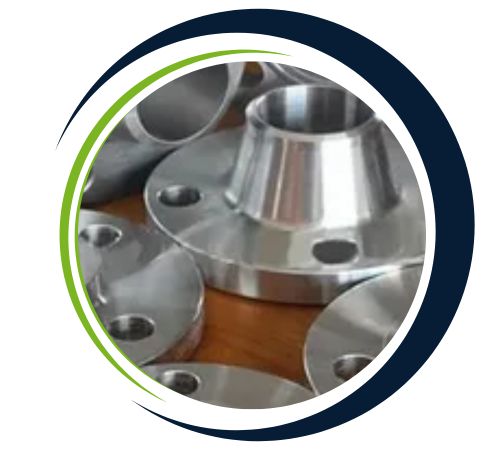

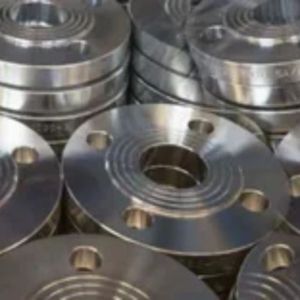

BS 10 Table E flanges are generally produced from carbon steel or low-alloy steel, providing both strength and durability. The chemical composition is comprised of the elements carbon, manganese, silicon, and traces of sulfur and phosphorus to attain the best weldability and corrosion resistance. The mechanical properties of these flanges are very good, with a high tensile strength, normally between 360 to 510 MPa, and a yield strength of approximately 240 MPa. Their elongation is between 20% and 25%, giving good flexibility. BS 10 Table E flanges are well suited for applications in different industries demanding strong and durable connections.

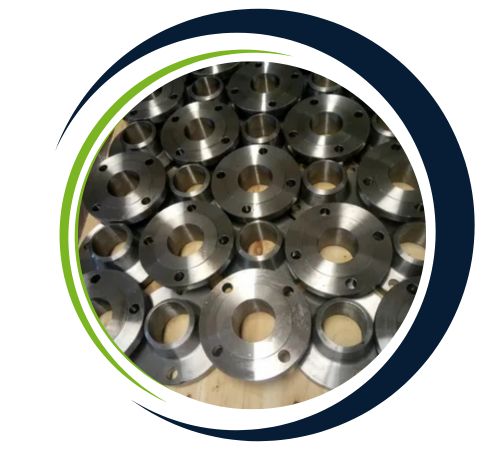

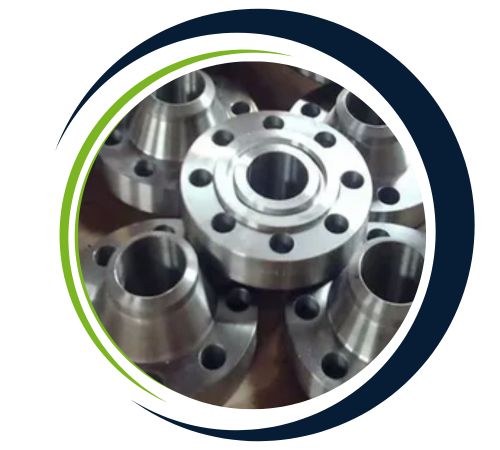

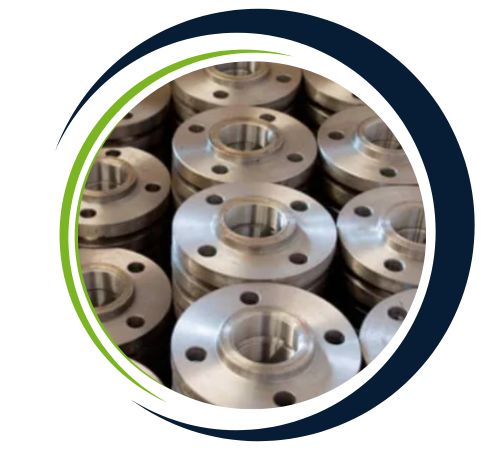

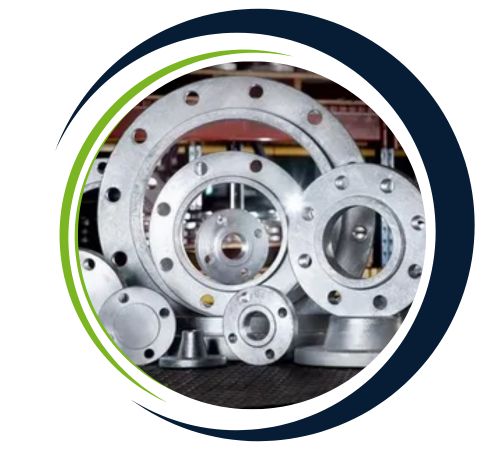

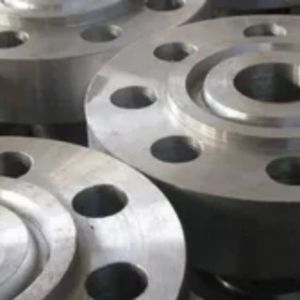

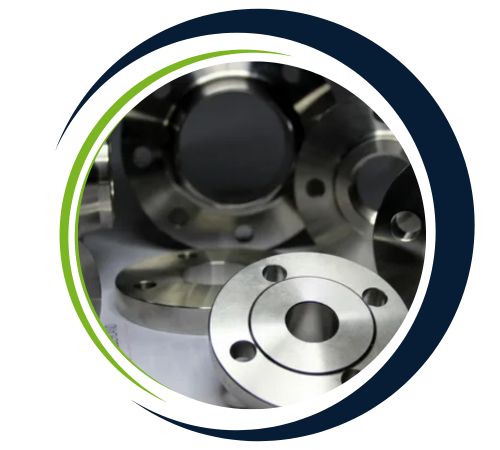

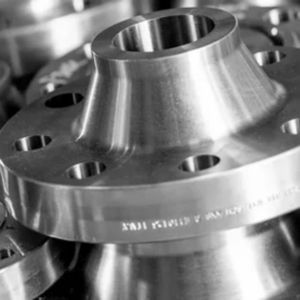

Kyoga Flanges, a leading supplier in Bedok, Bedok, offers an extensive selection of BS 10 Table E Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| N.B. SIZE | D | K | L | A | C | N1 | N2 | B | H1 | H2 | R1 | R2 | HOLES | |
| IN | mm | |||||||||||||
| ½” | 15 | 95.3 | 66.8 | 14.5 | 21.3 | 6.4 | 27.0 | 33.3 | 22.4 | 9.5 | 22.2 | 6.4 | 1.6 | 4 |
| ¾” | 20 | 101.6 | 73.2 | 14.5 | 26.7 | 6.4 | 33.3 | 38.1 | 27.7 | 11.1 | 22.2 | 6.4 | 1.6 | 4 |
| 1″ | 25 | 114.3 | 82.6 | 14.5 | 33.5 | 7.2 | 42.9 | 47.6 | 34.6 | 11.1 | 22.2 | 6.4 | 1.6 | 4 |
| 1 ¼” | 32 | 120.7 | 87.4 | 14.5 | 42.2 | 7.9 | 49.2 | 55.6 | 43.2 | 11.1 | 25.4 | 6.4 | 1.6 | 4 |
| 1 ½” | 40 | 133.4 | 98.6 | 14.5 | 48.3 | 8.7 | 58.7 | 61.9 | 49.5 | 12.7 | 28.6 | 6.4 | 1.6 | 4 |
| 2″ | 50 | 152.4 | 114.3 | 17.5 | 60.5 | 9.5 | 69.9 | 74.6 | 62.0 | 12.7 | 28.6 | 6.4 | 1.6 | 4 |
| 2 ½” | 65 | 165.1 | 127.0 | 17.5 | 73.2 | 10.3 | 82.6 | 90.5 | 74.7 | 15.9 | 31.8 | 6.4 | 1.6 | 4 |
| 3″ | 80 | 184.2 | 146.1 | 17.5 | 88.9 | 11.1 | 101.6 | 106.4 | 90.7 | 15.9 | 34.9 | 6.4 | 1.6 | 4 |
| 3 ½” | 88 | 203.2 | 165.1 | 17.5 | 101.6 | 11.9 | 114.3 | 119.1 | 103.4 | 17.5 | 34.9 | 6.4 | 1.6 | 4 |
| 4″ | 100 | 215.9 | 177.8 | 17.5 | 114.3 | 12.7 | 130.2 | 133.4 | 116.1 | 19.1 | 41.3 | 9.5 | 3.2 | 4 |
| 5″ | 125 | 254.0 | 209.6 | 17.5 | 141.2 | 14.3 | 152.4 | 160.3 | 143.8 | 19.1 | 44.5 | 9.5 | 3.2 | 8 |
| 6″ | 150 | 279.4 | 235.0 | 17.5 | 168.4 | 17.5 | 184.2 | 185.7 | 171.7 | 19.1 | 47.6 | 9.5 | 3.2 | 8 |
| 8″ | 200 | 336.6 | 292.1 | 17.5 | 219.2 | 19.1 | 241.3 | 241.3 | 221.5 | 22.2 | 50.8 | 9.5 | 3.2 | 8 |
| 10″ | 250 | 406.4 | 355.6 | 22.2 | 273.1 | 22.2 | 292.1 | 298.5 | 276.4 | 27.0 | 63.5 | 9.5 | 3.2 | 8 |
| 12″ | 300 | 457.2 | 406.4 | 22.2 | 323.9 | 25.4 | 342.9 | 349.3 | 325.9 | 28.6 | 69.9 | 9.5 | 4.8 | 12 |
| 14″ | 350 | 527.1 | 469.9 | 25.4 | 355.6 | 28.6 | 406.4 | – | 359.2 | – | 73.0 | 9.5 | 4.8 | 12 |
| 16″ | 400 | 577.9 | 520.7 | 25.4 | 406.4 | 31.8 | 431.8 | – | 410.5 | – | – | – | – | 12 |
| 18″ | 450 | 641.4 | 584.2 | 25.4 | 457.2 | 34.9 | – | – | 461.8 | – | – | – | – | 12 |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| BS 10 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 |
BS 10 Table E flanges find extensive use across industries in making pipe connections with secure, leak-proof piping joints. Standard uses include oil and gas production, petrochemical plants, water treatment, and power plants. BS 10 Table E flanges suit applications in high-temperature and high-pressure environments due to the highly mechanical strength they possess. They are used in piping systems, valves, pumps, and other equipment that require strong and durable connections. BS 10 Table E flanges are also used in construction, heating, ventilation, and air conditioning (HVAC) systems, ensuring safe and efficient operation of critical infrastructure.
Yes, we offer custom sizes for BS 10 Table E Flanges to meet specific project needs. Our team at Kyoga Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@www.kyogaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
