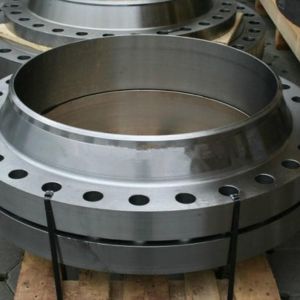

Kyoga Flanges, based in Bedok, Singapore, manufactures and supplies Titanium Long Weld Neck Flanges designed for extreme pressure, temperature, and stress conditions. With an extended tapered neck, these flanges provide superior stress distribution and unmatched joint integrity in critical piping systems. Made from high-grade titanium, they deliver exceptional corrosion resistance while maintaining strength without excess weight. Kyoga’s long weld neck flanges are precision-engineered for applications where failure is unacceptable and long-term reliability is mandatory.
Titanium Forged Flanges consist mostly of titanium and are frequently alloyed with other elements like aluminum, vanadium, and molybdenum for improved characteristics. They possess good corrosion resistance, especially in seawater and chemical environments, and a high strength-to-weight ratio. The low weight of titanium ensures that these flanges are lightweight but strong. The mechanical properties of these flanges are very good tensile strength, fatigue resistance, and excellent thermal stability. Benefits of Titanium Forged Flanges are high temperature resistance, being biocompatible for use in medical devices, and low maintenance cost due to their durability. These attributes have them well placed for use in aerospace, marine, chemical, and power plant industries.
| Size Chart | 1/2″ to 48″ (15 NB) to (1200NB) |
|---|---|
| Manufacturer of | ANSI DIN, GOST, UNI, BS, AS2129, JIS, NFE, AWWA, SABS, EN etc. |
| Coating | Zinc Plated, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized |
| Common Type | Forged Flange |
| Pressure Rating Chart ANSI | 300 LBS, 600 LBS, 150 LBS, 2500 LBS, 900 LBS, 1500 LBS |
| Connect Types/ Flange Face Types Manufacturer | RTJ, FF, RF, Small Tongue, LJF, Large Tongue & Groove |
| DIN / JIS / UNI / EN | 16Bar, 6Bar, 25Bar, 40Bar, 10Bar / PN10, PN25, PN64, PN16, PN6, PN40 |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
| Test | Magnetic particle detector, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, ydrostatic testing machine |
| Standards | API7S-43, API605, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, API7S-15, BS4504, MSS S44, ISO70051, BS 10, EN-1092, JISB2220, DIN, ASME/ANSI B16.5/16.36/16.47A/16.47B, BS1560-3.1, EN1092 |

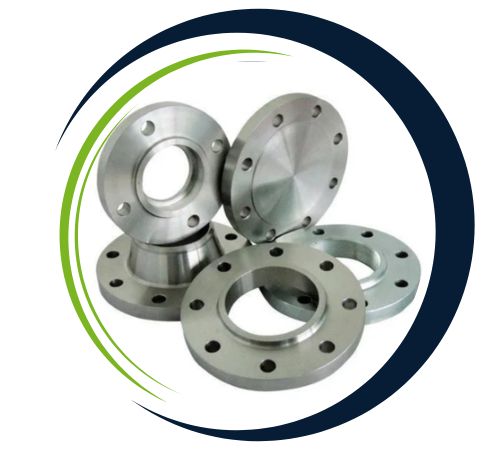

Kyoga Flanges, a leading supplier in Bedok, Bedok, offers an extensive selection of Titanium Forged Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium forged flanges find broad applications in all industries because they are highly resistant to strength, corrosion, and light in weight. In the aerospace industry, they are crucial for high-performance equipment subjected to harsh conditions. They are dependent on them for shipbuilding and offshore structures in the marine industry, where they must withstand seawater. For handling aggressive fluids and corrosive environments in chemical and petrochemical industries, titanium flanges are perfect. They are also utilized in power production, desalination facilities, and the manufacturing of medical devices. Their compatibility with living organisms and resistance make them a chosen material for both industrial and technical high-performance products.
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 ℃ (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 ℃ (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
Yes, we offer custom sizes for Titanium Forged Flanges to meet specific project needs. Our team at Kyoga Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@www.kyogaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
